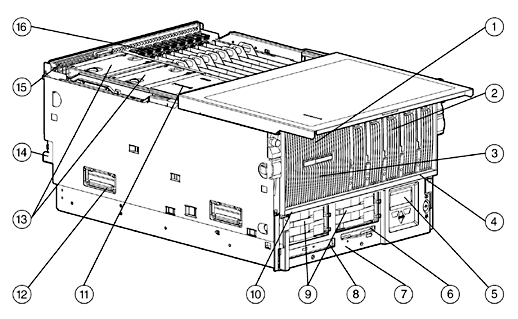

Hot
Plug RAID Memory using XOR & ECC-protected memory and user-friendly diagnostics
The
ultimate high-density data center server delivering breakthrough 8-way scalable
performance for 7 x 24 multi-server rack environments
Tool
less chassis for enhanced serviceability
133 MHz SDRAM
DIMM memory that is expandable to 64 GB addressable memory (+16GB for full redundancy)
Integrated
Smart Array 5i Controller (Ultra3 support) (supports RAID 0, 1, 1+0, and 5 across
internal hard disk drives) (One Internal Channel for RAID Capability for internal
drives and one External Channel for tape support only)
Integrated NC7770 PCI-X Gigabit Server
Adapter or Integrated HP NC7170 Dual-Port PCI-X 1000T Gigabit Server Adapter standard
depending on the model
Internal Hot Plug Drive Storage
of 1.20TB (4 x 300GB Ultra320 HDD running U3) or one DAT hot plug tape drive and
two hot plug hard drives
Robust set of hot plug and redundant
features including Hot Plug RAID Memory, PCI/PCI-X Hot Plug, hot plug drive bays,
redundant hot plug fans and power supplies and support for redundant NICs, ASR-2,
Remote-Flash Redundant ROM
Protected by HP Services and
a worldwide network of resellers and service providers. Three-year Next Business
Day, on-site limited global warranty. Certain restrictions and exclusions apply.
Pre-Failure Notification on processors, memory, and SCSI hard drives.
Cache
Memory One of the following depending
on Model
4-MB Integrated Level 3 cache
(per processor) NOTE: Available with 3.0 GHz models.
2-MB integrated level 3 cache
(per processor) NOTE: Available with 2.7 GHz or 2.2
GHz models.
Upgradeability
Upgradeable
to eight processors
Chipset
HP developed
F8 chipset
Memory Protection
Advanced ECC
Hot Plug RAID Memory
Memory
Type
133MHz ECC SDRAM DIMMs
Standard NOTE: Available with 2.2 GHz model.
2 GB
Standard NOTE: Available with 3.0 GHz or 2.7
GHz models.
4 GB
Maximum
64 GB (80 GB total)
NOTE:
All models come standard with all five memory cartridges populated and Hot
Plug RAID Memory enabled. NOTE: In standard Hot Plug RAID Memory mode, addressable memory refers
to the portion of memory that is addressable by the OS. Total memory consists
of addressable memory plus the redundant memory (stored in the dedicated
parity memory cartridge.)
Network Controller
Integrated HP NC7170 Dual-Port
PCI-X 1000T Gigabit Server Adapter in a slot NOTE: Available with 3.0 GHz, 2.7
GHz, and 2.2 GHz models.
NOTE:
All slots can accept universal keyed PCI cards.
Storage Controllers
Smart Array 5i Controller
(integrated on system board) supports (Ultra3) (supports RAID 0, 1, 1+0,
and 5 across internal hard disk drives)
Optional support
for Ultra3 or Ultra320 storage controllers in an I/O slot to internal drives
via array bypass cable kit and required cables ships with all HP ProLiant
DL760 in the accessories package.
Storage
Diskette Drive
Integrated 1.44 MB Diskette
Drive
Optical Drive
Integrated Slimline CD/DVD-ROM
Drive (8X speed for DVD and 24X speed for CD)
Hard Drives
None
Maximum
Internal Storage Type
Hot Plug
SCSI
1.20TB
4
x 300GB Ultra320 Drives (internal hot plug cage only) NOTE:
The Ultra320 drives run at Ultra3 speeds.
Interfaces
Serial
1
Pointing Device
(Mouse)
1
Graphics
1
Keyboard
1
Network RJ-45
1
Graphics
Integrated ATI RAGE
XL Video Controller with 8-MB SDRAM Video Memory
Form Factor
7U Rack Form Factor;
Ships with sliding rack rails and cable management arm; Standard 19" rack-mountable
ProLiant Essentials
Foundation Pack Software
HP Systems Insight Manager
HP's
new HP Systems Insight Manager (HP SIM) helps maximize system uptime and performance
and reduce system maintenance costs by providing proactive notification of problems
before those problems result in unplanned downtime or reduced productivity. HP
SIM are both easy to set up work with the Insight Management Agents, integrated
Lights-Out and Remote Insight Lights-Out Edition, and Version Control Agents to
deliver robust fault, configuration, and asset management as well as remote administration.
With HP SIM customers will also be able to take advantage of role-based security;
the ability to manage ProLiant, Integrity, and HP 9000 systems; and plug-ins for
storage, client, printer, and power management as well as server rapid deployment,
performance management, and workload management. For more details on HP SIM visit
http://www.hp.com/go/hpsim.
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please visit the SmartStart
Web site at http://www.hp.com/servers/smartstart. SmartStart
version supported (minimum): SmartStart 6.20.
Management Agents
The
Management Agents form the foundation for HP's Intelligent Manageability strategy.
They provide direct, browser-based access to in-depth instrumentation built into
HP servers, workstations, desktops, and portables, and send alerts to Systems
Insight Manager and other enterprise management applications in case of subsystem
or environmental failures. For additional information about the Management Agents
and other management products from HP, please visit the management Web site at
http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's
Choice Driver and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change notifications
for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice and
customize your profile to receive various new alerts as they become available,
on a weekly or monthly basis.
ROMPaq,
support software, and configuration utilities
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant
server and options available in SmartStart or downloadable from Software and Drivers
download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced
configuration analysis, reporting and troubleshooting utilities used by HP and
at your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional
software offerings that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack
- an automated solution for multi-server deployment and provisioning, enabling
companies to quickly and easily adapt to changing business demands.
Workload
Management Pack - provides easier management of complex environments, improving
overall server utilization and enabling Windows® 2000 customers for the first
time to confidently deploy multiple applications on a single multiprocessor ProLiant
Server.
Performance Management Pack - a performance management solution
that identifies and explains hardware performance bottlenecks on ProLiant servers
and attached options enabling users to better utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks or
broken network linkages and steers traffic to the optimum route based on network
conditions, plus it provides an extra layer of protection. The virus throttle
feature of the solution slows the propagation of fast spreading virus
Vulnerability
and Patch Management Pack - identifies and remediates software security vulnerabilities
due to missing patches as well operating system configurations that can be exploited
by viruses, worms, and other blended threats
Virtual Machine Management
Pack - provides central management and control of virtual machines from Microsoft
and VMware. Integrated approach provides the ability to manage both physical and
virtual resources from a single management console.
Server Migration Pack
- The Server Migration Pack automates the manual processes required for migrating
servers between physical or virtual platforms (P2V, V2P, and V2V).
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials
Industry Standard
Compliance
ACPI 1.0b Compliant
PCI-X and PCI 2.2 Compliant
PAE Support
Microsoft® Logo certifications
Intelligent Manageability
HP Systems Insight Manager
Remote Insight Lights-Out Edition ll (optional)
ROM-Based Setup Utility (RBSU)
Integrated Management Display (IMD)
Server Health logging
Automatic Server Recovery-2 (ASR-2)
System Interconnect Status Indicators
Remote-Flash Redundant ROM
Hot Spare Boot NOTE: Upon the event of a failed
processor or VRM in a multi-processing environment, the system will automatically
reboot and use the remaining good processor(s).
Power Down Utility
Power Supply Viewer
Pre-Failure Warranty (covers
processors, as well as SCSI
hard drives and memory)
Availability
Hot Plug RAID Memory using Industry
Standard ECC Memory
PCI-X/PCI Hot Plug with push button functionality
Redundant Hot Plug Fans
Dynamic sector repairing and drive parameter tracking (with Smart Array
controllers)
Fault Tolerant Processor Power Modules
Redundant/adaptive load balancing NIC Support
Redundant Hot Plug Power Supplies
Security
Power-on password
Diskette drive control
Diskette boot control
Network server mode
Security provision
Parallel and serial interface control
Administrator's password
Disk configuration lock
Hot plug access security
Server Power Cords
Two Highline IEC to IEC power
cords (PDU adapters) ships standard
Two Redundant Hot Plug
1150/500-Watt power supplies per system. Power supplies are load sharing and provide
1150 Watts of Redundant power for 220-volt input or 500 Watts of Redundant power
for 110-volt input. NOTE: To ensure redundancy
of server power, HP requires that 200-240 VAC power be used for all deployments.
This will ensure that both power supplies can support up to their maximum configurations,
and remain in a redundant power supply state. NOTE: A maximum of two
power supplies are supported and ship standard with each server.
System Fans
Two Hot-Plug redundant fans
ship standard. Two maximum supported.
Microsoft Windows 2000
Microsoft Windows 2000 Advanced Server
Microsoft Windows Server 2003 (Standard, and Enterprise)
SCO UnixWare®
LINUX (Red Hat, SuSE)
VMware Virtualization Software
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack
is used, observe the following additional requirements to ensure adequate
airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U
server rack includes closing front and rear doors, you must allow
830 square inches (5,350 sq cm) of hole evenly distributed from top
to bottom to permit adequate airflow (equivalent to the required 64
percent open area for ventilation).
Side: The clearance between the
installed rack component and the side panels of the rack must be a
minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels
to fill all remaining empty front panel U-spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in
improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide
or the Documentation CD provided with the server, or to the server documentation
located in the Support section at the following URL: http://h18000.www1.hp.com/products/servers/ProLiantdl760/index.html. NOTE: Allow a minimum of 48 in (121.92 cm) clearance beyond the front of
your rack to permit server installation and removal. This applies to both individual
rack installations as well as when aligning rack rows so that the front doors
are facing each other.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration, customization, integration and
deployment services for HP servers and storage products. Customers can
choose how their factory solutions are built, tested, integrated, shipped
and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging.
HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades,
HP BladeSystem, HP 9000 servers as well as the MSA1000, VA7xxx, EVA, XP,
rackable tape libraries and configurable network switches.
For more information on Factory Express services for your specific server
model please contact your sales representative or go to http://www.hp.com/go/factory-express.
This product is covered by a
global limited warranty and supported by HP Services and a worldwide network
of resellers and service providers. Hardware diagnostic support and repair
is available for three years from date of purchase. Support for software
and initial setup is available for 90 days from date of purchase. Additional
support may be covered under the warranty or available for an additional
fee. Enhancements to warranty services are available through HP Care Pack
services or customized service agreements.
NOTE: Limited warranty includes 3 year
parts, 3 year labor, 3-year on-site support.
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft,
Linux, ProLiant Essentials and VMWare-based IT solutions helping to
deliver high level of application availability. Response times range
from 30 mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack services include coverage for the HP branded hardware options
qualified for the server, purchased at the same time or afterward, internal
to the enclosure, as well as 22" and smaller external monitors and
tower UPS options up to 3kVA; these items will be covered at the same
service level and for the same coverage period as the server. Coverage
of UPS Battery is not included, standard warranty terms & conditions
apply. For servers or storage systems installed within a rack, service
also covers all HP qualified rack options installed within the same rack.
NOTE: For more information on HP Care
Pack services, contact any of our worldwide sales offices or resellers
or visit our worldwide Web site on the internet at: http://www.hp.com/hps/carepack NOTE: For more complete information on HP Services offerings,
customers and resellers, please visit us at: http://www.hp.com/hps NOTE: Additional information regarding worldwide limited warranty
and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
ProLiant Essentials
Intelligent Networking Pack - Windows Edition, Single Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
ProLiant Essentials
Performance Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key, HP Management
CD and documentation. NOTE: The most recent version of the software can always be downloaded
at http://www.hp.com/products/pmp.
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
372214-B21
ProLiant Essentials
Server Migration Pack, Single-Migration License NOTE: Contains one license, enabling 1 server migration, with a unique
license activation key and documentation. NOTE: This license allows 1 server to be migrated from a physical
server to a virtual machine. Or this license can be used to migrate a virtual
machine from one virtualization layer i.e. VMware GSX to a different virtualization
layer such as VMware ESX or Microsoft Virtual Server 2005.
ProLiant Essentials
Vulnerability and Patch Management Pack
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials
Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
NetServer to ProLiant
integrations services
HP NetServer to ProLiant
integration and assessment service
304164-002
NOTE:
HP identifies current levels of NetServer support, services, and management.
This service helps maximize customer’s ability to add ProLiant platforms
into their current environment.
HP TopTools to Insight
Manager 7 installation and startup service
304163-002
NOTE: Provides on-site
review, installation and configuration services for Insight Manager 7. HP
will also re-create, as closely as possible, the views and reports from
the customer’s current TopTools configuration. This service assures a smooth
transition to the ProLiant Essentials software.
HP NetServer to ProLiant
Essentials Rapid Deployment Pack installation and startup service
304162-002
NOTE: Install and configure
Rapid Deployment Pack in a test environment, then deploy a server image
to a maximum of 250 systems in the production environment. This service
helps to assure successful system deployment.
Processor
NOTE: Intel
Xeon 3.0 GHz/4MB, 2.7 GHz/2MB, 2.2 GHz/2MB, 2.8 GHz/2MB, 2.5 GHz/1MB, 2.0 GHz/2MB,
2.0 GHz/1MB, and 1.5 GHz/1MB processors cannot be mixed in the same server. They
all have to be of the same speed.
(4)
Intel Xeon MP 3.0 GHz -4MB Processor Option Kit NOTE: This processor option kit (PN
351050-B21) supports the HP ProLiant DL760 G2 and the HP ProLiant DL740
servers. This option kit contains 4 x Intel Xeon MP 3.0GHz/4MB processors.
NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3
speeds. U320 drives require an optional U320 Smart Array Controller or U320 SCSI
HBA to support U320 transfer rates.
256-MB Battery-Backed Cache Module NOTE: This 256-MB Battery-Backed
Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks
Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500.
64-Bit/133MHz Dual Channel Ultra320 SCSI Adapter (The 64-bit/133-MHz Dual Channel Wide
Ultra320 SCSI Adapter ( 268351-B21) will default to Wide Ultra2 when not
used with the Wide Ultra3 hard drives.)
HP
StorageWorks Ultrium 232 Internal Tape Drive (Carbonite) NOTE:
No internal tape drives fit inside this HP ProLiant server (except hot plug tape).
The internal drive shown here is for the 1U and 3U Rack-mount Kit.
HP
StorageWorks 1U Rack-Mount Kit NOTE:The 1U Rack-mount Kit can support up to (2) half-height
tape drives and compatible with multiple Single-Ended and LVD SCSI tape drives
including the DAT 24, DAT 40, DAT 72, DLT VS80, DLT VS160, Ultrium 215, Ultrium
232 and Ultrium 448 tape drives.
HP StorageWorks 3U Rack-Mount
Kit NOTE:The
3U Rack-mount Kit can support up to (2) full-height or (4) half-height tape drives
and compatible with multiple Single-Ended and LVD SCSI tape drives including DAT
24, DAT 40, DAT 72, DLT VS80, DLT VS160, SDLT 320, SDLT 600, Ultrium 215, Ultrium
230, Ultrium 232, Ultrium 460, Ultrium 448 and Ultrium 960 tape drives.
NOTE: Please
reference the 1/8 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference current
compatibility information at http://www.hp.com/go/ebs.
Tape Libraries
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 Ultrium
960 Drive Library
NOTE: Please reference
the MSL2024, MSL4048 and MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs.
NOTE:
Please see the StorageWorks Modular SAN Array 1500 cs QuickSpecs for additional
options and configuration information at: http://www.hp.com/go/MSA1500cs
HP 22 kVA S332 Monitored PDU- single input, 3-phase, 32A (INTL)
AF917A
Modular PDUs 1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets
shipped with
the unit (optimized for 10000 and 9000 series racks).
HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127
VAC) (NA, Japan) NOTE: This mPDU ( 252663-D71) may
also be used to connect the low volt model of the UPS R3000 XR.
HP Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240
VAC) (WW) NOTE: This PDU has a detachable
input power cord and allows for adaptability to country specific power
requirements. This model may also be used with the high volt UPSs R3000
XR and R6000 For North America, need to order cable PN 340653-001.
Rack Adapter Kit NOTE: This kit allows HP rack servers
to fit in racks that are 24" wide.
332815-B21
Third Party Rack Kit
274739-B21
NOTE: The Third party rack kit supports the HP
ProLiant ML530 G2, HP ProLiant ML570 G2, HP ProLiant DL740, and HP
ProLiant DL760 G2. Provides support for any rack, square hole or round
hole (including HP Rack System /E and HP Systems) with an adjustment range
from 23 ½" – 34" deep.
NOTE: The Third
Party Rack Kit is required for round hole racks or for square hole racks
that do not conform to the adjustment range of the standard rail that ships
with the server.
Telco Rack Support
NOTE: Support for all 2-post Telco racks requires the Third Party Rack
Kit (PN 274739-B21) kit plus an additional option kit from Rack Solutions.
The Rack Solutions brackets can be purchased at: http://www.racksolutions.com/compaq.
NOTE: xxxxxx-B21 (pallet) used to ship
empty racks shipped on a truck. -B22 (shock pallet) used to ship racks
with equipment installed (by custom systems, VARs and Channels). xxxxxx-B23
(crated) used for air shipments of empty racks.
NOTE: Cat5e cables
are required to connect Interface Adapters to Console Switches. Cat5e cables
can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x 4 USB/PS2 KVM Switch, TT
(NA/JPN)
371301-D71
HP 1x 4 USB/PS2 KVM Switch, TT
(AU/NZ)
371301-011
HP 1x 4 USB/PS2 KVM Switch, TT
(UK)
371301-031
HP 1x 4 USB/PS2 KVM Switch, TT
(EU)
371301-A21
HP 1x 4 USB/PS2 KVM Switch, RM
(ALL)
371302-B21
HP PS2 KVM Cable with audio, 6',
2-pack
371730-B21
HP USB KVM Cable with audio, 6',
2-pack
371729-B21
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
NOTE:
Cat5e cables are required to connect Serial Adapters to Serial Console Servers.
Additional Serial Adapters and Cat5e cables can be found at the following
URL: http://www.hp.com/go/kvm.
NOTE: For additional
information regarding KVM switches, Serial Console servers, rack mount monitors,
keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
Service
and Support Offerings (HP Care Pack Services)
Hardware Services On-site
Service
4-Hour On-site Service,
5-Day x 13-Hour Coverage, 3 Years, Electronic
U4623E
4-Hour On-site Service,
7-Day x 24-Hour Coverage, 3 Years, Electronic
U4624E
Installation & Start-up
Services
Hardware Installation, Electronic
U4633E
Installation & Start-Up
of a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F,
excl. HP holidays, Electronic
U4634E
Support Plus
Onsite HW support, 8am-9pm,
M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite
at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4635E
Onsite HW support, 8am-9pm,
M-F, 4hr response and Linux O/S SW Tech support offsite, onsite at
HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays,
Electronic
U4637E
Support Plus 24
Onsite HW support 24x7,
4hr response and Microsoft O/S SW Tech support offsite, onsite at
HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4636E
Onsite HW support 24x7,
4hr response and SuSE Linux SW Tech support offsite, onsite at HP's
discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4638E
6-Hour Call to Repair,
On-site Service 7-Day x 24-Hour Coverage, 3 Years
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
HP
ProLiant DL760 G2 2.2 GHz/2MB or 2.0 GHz/1MB, 2048MB (4P)
Standard Memory 2048 MB
addressable buffered ECC SDRAM DIMM memory (2 x 256 MB DIMMs x 5 Hot-Plug RAID
Memory Cartridges. The 5th cartridge is populated for redundancy.)
Standard
Memory Plus Optional Memory Up to 51,200 MB of
addressable ECC SDRAM DIMM memory is available with the installation of optional
ECC SDRAM DIMM memory expansion kits.
Standard
Memory Replaced with Optional Memory Up to 65,536
MB of addressable ECC SDRAM DIMM memory is available with the removal of standard
memory and the installation of optional ECC SDRAM DIMM memory expansion kits.
NOTE:
8 slots per Hot-Plug RAID Memory Cartridge. Up to 64 GB addressable memory
total. Memory must be added in banks of two DIMMs per cartridge across all five
(four if running in a non-redundant mode) Hot-Plug RAID Memory Cartridges. Charts
do not represent all possible configurations.
DL760 G2 Memory
Slot
1
2
3
4
5
6
7
8
Cartridge 1 (C1)
Standard
256 MB
256 MB
empty
empty
empty
empty
empty
empty
Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 2 (C2)
Standard
256 MB
256 MB
empty
empty
empty
empty
empty
empty
Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 3 (C3)
Standard
256 MB
256 MB
empty
empty
empty
empty
empty
empty
Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 4 (C4)
Standard
256 MB
256 MB
empty
empty
empty
empty
empty
empty
Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 5 (C5)
Standard
256 MB
256 MB
empty
empty
empty
empty
empty
empty
Optional
256 MB
256 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Following are memory options available from HP:
2048 MB 133MHz ECC SDRAM Memory Option Kit (1 x 2048 MB) NOTE: A ROM dated later than 2/14/2003 is needed to use 2 GB DIMMs.
HP
ProLiant DL760 G2 3.0 GHz/4MB, 2.7 GHz/2MB, 2.5 GHz/2MB or 2.8 GHz/2MB 4096MB
(4P)
Standard Memory 4096
MB buffered ECC SDRAM DIMM memory (2 x 512 MB DIMMs x 5 Hot-Plug Memory Cartridges.
The 5th cartridge is populated for redundancy.)
Standard
Memory Plus Optional Memory Up to 53,248 MB of SDRAM
DIMM memory is available with the installation of optional SDRAM DIMM memory expansion
kits.
Standard Memory Replaced with Optional
Memory Up to 65,536 MB of SDRAM DIMM memory is available
with the removal of standard memory and the installation of optional SDRAM DIMM
memory expansion kits.
NOTE: 8 slots
per Hot-Plug RAID Memory Cartridge. Up to 64 GB addressable memory total. Memory
must be added in banks of two DIMMs per cartridge across all five (four if running
in a non-redundant mode) Hot-Plug RAID Memory Cartridges. Charts do not represent
all possible configurations.
DL760 G2 Memory
Slot
1
2
3
4
5
6
7
8
Cartridge 1 (C1)
Standard
512 MB
512 MB
empty
empty
empty
empty
empty
Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 2 (C2)
Standard
512 MB
512 MB
empty
empty
empty
empty
empty
Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 3 (C3)
Standard
512 MB
512 MB
empty
empty
empty
empty
empty
Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 4 (C4)
Standard
512 MB
512 MB
empty
empty
empty
empty
empty
Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Cartridge 5 (C5)
Standard
512
MB
512 MB
empty
empty
empty
empty
empty
Optional
512 MB
512 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Maximum
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
2048 MB
Following are memory options available from HP:
2048 MB 133MHz ECC SDRAM Memory Option Kit (1 x 2048 MB) NOTE: A ROM dated later than 2/14/2003 is needed to use 2 GB DIM
BTU Rating (Maximum output) (NOTE
that the maximum heat output by the server is equal to the electrical power input.)
1555 Watts [5309 BTU/hr] (System is configured
to draw maximum power)
Power
Supply Output Power (per power supply)
Rated Steady-State Power
500W/1150W (lowline/highline)
Maximum Peak Power
540W/1150W (lowline/highline)
Temperature Range
Operating
50° to 95° F at sea level, altitude de-rating of 1.8° F per 1,000
ft to 10,000 ft (10° to 35° C at sea level, altitude de-rating of 1°C
per 300 m to 3,000 m). Maximum rate of change is 18°F/Hr (10°C/Hr)
Non-operating
-22° to 140 ° F (-30° to 60° C). Maximum rate of change is
36° F/Hr (20° C/Hr)
Shipping
-22° to 122°
F (-30° to 50° C)
Relative Humidity (non-condensing)
Operating
10 to 90%
relative humidity, 82.4°F (28°C) maximum wet bulb temperature, non-condensing
Non-operating
5 to 95% relative humidity, 101.7°F (38.7°C) maximum wet bulb temperature,
non-condensing
Maximum Wet Bulb Temperature
101.7° F (38.7° C)
Acoustic Noise
Idle (Fixed Disk Drives Spinning)
L WAd (BELS)
6.9
L pAm (dBA)
53
Power Supply
1150/500W,
Hot Plug Redundant (2 standard)
One Redundant Power Supply (optimized to provide full redundancy at 220
volts)
Input
Specifications
Normal
Line Voltage
100 to 120
VAC/200 to 240 VAC
Range Input Line
90 to 132 VAC/180 to 265 VAC
Frequency Range
47 to 63 Hz
Power Factor
0.95
Input Current
8 A at
100 VAC/10 A at 200 VAC
Inrush Current
<70 A at 132 VAC (cold start)
Holdup Time
20 ms from zero crossing at 120 VAC
General Specifications
Full Output Rating
To
104° F (40° C) and 5,000 ft (1524 m)
To 89.6° F (32° C) and 10,000 ft (3,048 m) (derate linearly)
Minimum Load
1 A on
5 V output; 1 A on 12 V output; 0.5 A on 3.3 V output
Ambient Temperature
Range
Operating
41° to 122° F (5° to 50° C)
Storage
-40° to
185° F (-40° to 85° C)
Dielectric Voltage Withstand
Input to Output
3,000
VAC/min
Input
to Ground
1,500 VAC/min
Input Transient
Susceptibility
Common
and Differential Mode (superimposed on AC line)
2,500 V, 1µs, damped sinusold 600 V, 10 µs pulse
Differential Mode
20%
step change in AC input voltage
Slimline CD/
DVD-ROM Combo Drive (8X/24X)
Shipping Dimensions
13.88
x 11.38 x 9.25 in (35.26 x 28.91 x 23.50 cm)
Shipping Weight
5
lb (2.27 kg)
Disk
Applicable Disk
DVD-R
(Read Only)
2.6
GB/side DVD-RAM (Read Only)
5.2
GB/side DVD-RAM (Read Only)
CD-ROM
Mode-1 data disc
CD-ROM
Mode-2 data disc
CD
Audio disc
CD-Extra
CD-ROM
CD-R
CD
Text
PhotoCD
CD-I (mode 2)
CD-I Ready
CD-Bridge
Capacity
DVD-ROM
DVD-SL
4.7
GB/side
DVD-DL
8.5
GB/side
Double
Sided
9.40 GB/side
DVD-R
3.95
GB/side
DVD-RAM
2.6
GB/side and 5.2 GB/
CD-ROM
Mode-1
650
MB (550 MB)
Mode-2
742
MB (640 MB)
Block
Size
DVD
2,048
bytes
CD
2,352
(Mode-0)
2352,
2340, 2336, 2048 bytes (Mode-1)
2352,
2340, 2336, 2048 bytes (Mode-2)
Diameter
120 mm, 80
mm (with adapter at vertical mounting mode)
Loading
Mechanism
Tray type
Interface
EIDE
(ATAPI)
Access Times (typical)
Random
DVD-ROM <
120 ms, CD-ROM < 110 ms
Full-Stroke
DVD-ROM
< 240 ms, CD-ROM < 160 ms
Audio
Output Level (typical)
Line-out
CD
0.7 Vrms at 47 Kohms Load
Data Transfer Rate
DVD-ROM
Single
Layer
10.8 MB/sec.
Max.
DVD-RAM
2.77
MB/sec. Maxz
CD-ROM
7.2
MB/sec. Max.
Cache
Buffer
2 MB
Spin-up Time (typical)
less than 10 seconds
MTBF
120,000 Power On Hours (POH)
Ambient Temperature
Operating
-22° to 140° F (-30° to 60° C)
Relative
Humidity
Operating
10% to 80%
Storage/ Transportation
5% to 95%
Dimensions
(HxWxD, maximum)
0.5
x 5.04 x 5.1 in (12.7x128x129.4 mm)
Option
Kit Contents
DVD-ROM
drive with installation guide, warranty card, registration card
Smart Array 5i Controller (integrated
on system board)
Protocol
Wide Ultra3 SCSI
Processor
32-bit RISC
XOR engine
Hardware RAID
Electrical interface
Low Voltage Differential (LVD)
Simultaneous Drive Transfer Channels
2
Channel Transfer Rate
320 MB/s total; 160 MB/s per channel
SCSI Port Connectors
One external and one internal SCSI port
DL760 G2 Memory
32 MB of DRAM used for code, transfer buffers, and non-battery-backed
read cache
Peak transfer rate
160 MB/s
Logical Drives Supported
32
Software Upgradeable Firmware
Yes
RAID Support
RAID 5 (Distributed Data Guarding
RAID 1+0 (Striping and Mirroring)
RAID 1 (Mirroring)
RAID 0 (Stripping)
Disk Drive and Enclosure Protocol Support
Ultra2 and Ultra3
NC7170 Dual-Port PCI-X
1000T Gigabit Server Adapter
Network Interface
Two 10/100/1000-T
ports
Compatibility
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad, IEEE
802.3p, and IEEE 802.3Q
Data Transfer Method
64-bit/133MHz PCI-X,
compatible with 64/100, 64/66, 64/33 and 32/33
Ships Same Business Day | Mon - Fri 8:00am - 5:00pm EST | P: 866.252.9743
DL QuickSpecs
US QuickSpecs
303284-B21
