New Smart Array 5i Plus Controller & Battery-Backed
Write Cache (BBWC) Enabler bundle option kit

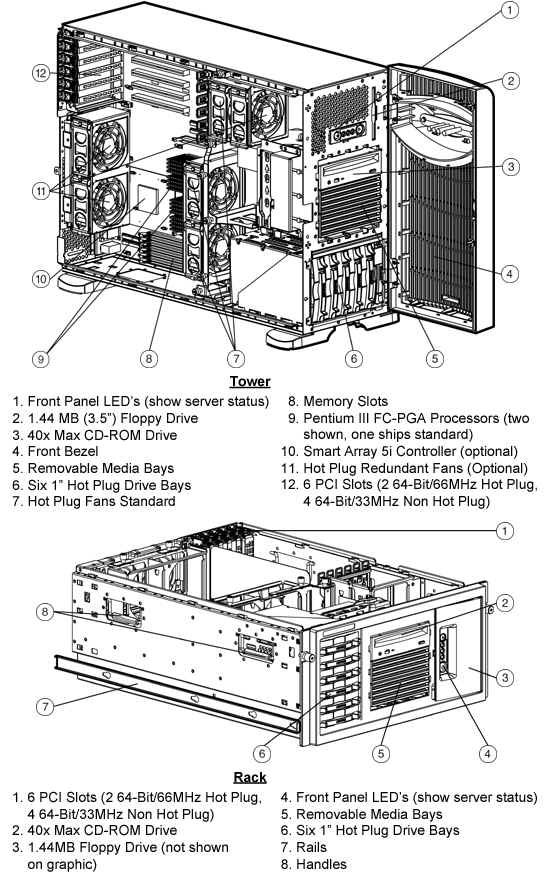

At A Glance
First 2-way server with advanced memory protection and high availability features for
demanding remote site and data center environments
Intel® Pentium® III FC-PGA2 Processors - 1.40 GHz with 512-KB
second level ECC cache (dual processing capable)
Integrated Dual Channel Wide Ultra3 SCSI Adapter
2X1 Interleaved memory doubles the memory bandwidth; expandable to 6GB
Compaq NC3163 Fast Ethernet NIC Embedded 10/100 WOL (Wake On LAN)
ServerWorks HE SuperLite Chipset featuring a Triple Peer PCI bus Architecture with
133-MHz Front Side Bus and 64-Bit/66-Mhz slots for ultimate data throughput
Versatile availability features deliver the right amount protection to end users –
PCI hot plug, hot plug redundant power supplies, hot plug redundant fans, Online Spare
Memory
6x1" Hot Plug Wide Ultra2/Ultra3 Drive Cage standard
First in class to offer multiple racking solutions – Compaq Standard, Telco, and
Third Party
Support for Hot Plug 2-Bay SCSI Drive Cage; increases internal hot pluggable storage
capacity to an unprecedented 582.4-GB of internal storage and allows separation of boot
and OS hard drives or hot plug tape to run on a separate channel from data drives
Insight Manager™ 7, SmartStart™, Automatic Server Recovery
(ASR), ROM Based Setup Utility (RBSU)
Protected by HP Services, including a three-year, Next Business Day on-site, limited,
Global warranty and extended Pre-Failure Warranty that covers processors, memory and disk
drives — Certain restrictions and exclusions apply. Consult the HP Customer Support
Center at 1-800-345-1518 for details
1.174 TB
((6 x 146.8 GB 1² with standard internal hot plug drive cage + (2 x 146.8 GB 1² ) with optional ML3xx
Internal Two Bay Hot Plug SCSI Drive Cage)
953.6 GB
(6 x 146.8 GB 1² internal hot plug drive cage + 2 x 36.4 internal non-hot plug drives in the removable media bays)
Interfaces
Parallel
1
Serial
2
Pointing Device
(Mouse)
1
Graphics
1
Keyboard
1
External SCSI
1
Network RJ-45
1
USB Ports
2
NOTE: Please see the following URL for
additional information regarding USB support:
Insight
Manager 7 helps maximize system uptime and performance and reduces the cost of maintaining
the IT infrastructure by providing proactive notification of problems before those
problems result in costly downtime and reduced productivity. Insight Manager 7 is easy to
set up and provides rapid access to detailed fault and performance information gathered by
the Management Agents. One-click-access to the Integrated Lights-Out or Remote Insight
Lights Out Edition board allows systems administrators to take full graphical control of
ProLiant servers in remote locations or lights-out data centers. Finally, Insight Manager
7 in concert with the Version Control Agents and Version Control Repository Manager
enables systems administrators to version manage and update system software across groups
of ProLiant servers.
SmartStart
SmartStart
is a tool that simplifies server setup, providing a rapid way to deploy reliable and
consistent server configurations. For more information, please visit the SmartStart
website at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum):
SmartStart 5.10
Management
Agents
The
Management Agents form the foundation for HP’s Intelligent Manageability strategy.
They provide direct, browser-based access to in-depth instrumentation built into HP
servers, workstations, desktops, and portables, and send alerts to Insight Manager 7 and
other enterprise management applications in case of subsystem or environmental failures.
For additional information about the Management Agents and other management products from
HP, please visit the management website at http://www.hp.com/servers/manage.
ActiveUpdateä
ActiveUpdate
is a web-based application that keeps IT managers directly connected to HP for proactive
notification and delivery of the latest software updates.
ROMPaqä , support software, and configuration utilities
The
latest software, drivers, and firmware fully optimized and tested for your ProLiant server
and options.
Compaq
Survey Utility and diagnostics utilities
The most
advanced configuration analysis, reporting and troubleshooting utilities used by HP and at
your fingertips.
Optional
ProLiant Essentials Value Packs
Optional
software offerings that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack – an automated solution for multi-server deployment and
provisioning, enabling companies to quickly and easily adapt to changing business demands.
Workload Management Pack – provides easier management of complex environments,
improving overall server utilization and enabling Windows® 2000 customers for
the first time to confidently deploy multiple applications on a single multiprocessor
ProLiant Server.
Recovery Server Option Pack – entry-level high availability software that will
provide reliable protection and increased uptime against server hardware and operating
system failures.
Performance Management Pack – a performance management solution that identifies and
explains hardware performance bottlenecks on ProLiant servers and attached options
enabling users to better utilize their valuable resources.
NOTE: Flexible and volume quantity license kits are available for
ProLiant Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the various
ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For
more information regarding ProLiant Essentials Software, please see the following URL:
Insight
Manager 7
Management Agent
Redundant ROM
Remote Flash ROM
Remote Lights-Out Edition (optional)
Automatic Server Recovery (ASR)
ROM-Based Setup Utility (RBSU)
Integrated Management Log
Drive Parameter Tracking (with Smart Array controller)
Dynamic Sector Repairing (with Smart Array controller)
Hot Spare Boot (NOTE: Upon the
event of a failed processor or VRM in a multi-processing environment, the system will
automatically reboot and use the remaining good processor(s).)
Pre-Failure Warranty (covers processors, hard drives and memory)
Security
Power-on
password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
Disk configuration lock
Server Power Cords
One
Lowline power cord ships standard. NOTE: Purchase of the optional
Redundant Power Supply (PN 225075-xx1) will provide a second power cord if installed.
Power Supply
500
Watt-CE Mark Compliant Hot Plug Power Supply
Optional Redundant Capability
System Fans
3 fans
ship standard. 6 total supported internally for full redundancy. NOTE: The additional 3 fans are
available via Option Kit (PN 225073-001).
Microsoft
Windows NT® Server
Microsoft Windows 2000
Microsoft Small Business Server 2000
Novell® NetWare® Novell NetWare Small Business Suite
SCO® OpenServer® SCO® UnixWare® IBM OS/2 Warp Family
LINUX® (RedHat®, SuSE®, Caldera® Server)
Sun™ Solaris™ Intel Platform Edition*
*NOTE: Not all storage controllers are supported under Solaris
7 and 8. Please refer to the Supported Devices list on the Solaris Driver Update download
page.
For Solaris 7 please see the following
The increasing power of new high-performance processor technology requires increased
cooling efficiency for rack-mounted servers. The 9000 and 10000 Series Racks provide
enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers
using the latest processors.
Rack 7000 series Cabinets
When installing a server with processors running at speeds of 550 MHz or greater in
Compaq Rack 7000 series racks with glass doors (165753-001 (42U), and 163747-001 (22U)),
the new processor technology requires the installation of High Airflow Rack Door Inserts
( 327281-B21 (42U), 327281-B22 (42U 6 pack), or 157847-B21 (22U)) to promote enhanced
airflow for maximum cooling.
CAUTION: If a third-party
rack is used, observe the following additional requirements to ensure adequate airflow and
to prevent damage to the equipment:
Front and rear doors:
If your 42U server rack includes closing front and rear doors,
you must allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to
bottom to permit adequate airflow (equivalent to the required 64 percent open area for
ventilation).
Side:
The clearance between the installed rack component and the side panels of the
rack must be a minimum of 7 cm (2.75 inches)
CAUTION: Always use blanking panels to fill all remaining empty front panel
U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without
blanking panels results in improper cooling that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and
Installation Guide or the Documentation CD provided with the server, or to the server
documentation located in the Support section at the following URL: http://www5.compaq.com/products/servers/
ProLiantml370/index.html
Service and
Support
HP
Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage
of hard drives, memory and processors) fully supported by a worldwide network of resellers
and service providers. HP technical assistance is available 7x24, toll free in the United
States and Canada. Telephone support services may be covered under warranty or available
for an additional fee.
NOTE: Limited Warranty
includes 3 year Parts, 3 year Labor, 3-year on-site support.
A full range of CarePaqä packaged hardware and software
services:
Installation and start up
Extended coverage hours and enhanced response times
System management and performance services
Availability and recovery services
NOTE: For more information,
customer/resellers can contact
ProLiant Essentials Performance
Management Pack v2.0, Single License
306696-B21
NOTE:
Flexible and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to http://www.hp.com/servers/proliantessentials or the various
ProLiant Essentials Value Pack product QuickSpecs for more information.
NOTE: For
more information regarding ProLiant Essentials Software, please see the following URL:
HP NetServer to ProLiant
integration and assessment service NOTE: HP identifies current levels of
NetServer support, services, and management. This service helps maximize customer’s
ability to add ProLiant platforms into their current environment
304164-002
HP TopTools to Insight Manager 7
installation and startup service NOTE: Provides on-site review,
installation and configuration services for Insight Manager 7. HP will also re-create, as
closely as possible, the views and reports from the customer’s current TopTools
configuration. This service assures a smooth transition to the ProLiant Essentials
software.
304163-002
HP NetServer to ProLiant
Essentials Rapid Deployment Pack installation and startup service NOTE: Install and configure Rapid
Deployment Pack in a test environment, then deploy a server image to a maximum of 250
systems in the production environment. This service helps to assure successful system
deployment.
ML3xx Two Bay Hot Plug SCSI Drive
Cage NOTE: The drive cage option kit (PN
244059-B21) has one 1² drive bay and one 1.6² drive bay, installed in two available removable media bays.
NOTE: All
U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require
an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer rates.
NOTE:
Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity,
height, width, interface, transfer rate, seek time, physical configuration, and operating
temperature:
U320 Hard Drive QS: http://www5.compaq.com/products/quickspecs/
11531_na/11531_na.html
Storage Controllers
Smart Array 5I Plus Controller
& Battery Backed Write Cache (BBWC) Enabler Bundle NOTE: This option kit (PN
263697-xx1) supports the ProLiant ML370 G2 only.
256-MB Battery-Backed Cache
Module NOTE: This 256-MB Battery-Backed Cache
Module supports the Smart Array 5300 series controllers, MSA 1000 and the Smart Array
Cluster Storage
NOTE:
Monitors larger than 17² may be too heavy for use in rack
systems.
Tape Drives
NOTE:
In order to install certain tape drives internally, you may need to remove the rails that
come standard on the drives and then re-insert the screws in the mounting holes. Mounting
screws are shipped standard with server.
NOTE:
Please see the 20/40-GB DAT Tape Drive QuickSpecs for additional options such as host bus
adapters, controllers, cassettes, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
10426_na/10426_na.html
Internal and
External AIT Tape Drives
HP StorageWorks Internal AIT
35-GB, LVD Tape Drive (Carbon)
216884-B21
HP StorageWorks External AIT
35-GB, LVD Tape Drive (Carbon)
NOTE:
Please see the AIT 35-GB, LVD Tape Drive QuickSpecs for additional options such as
adapters, controllers, and cassettes, and for an up-to-date listing of the latest O/S
Support details, please see the following: http://www5.compaq.com/products/quickspecs/
10712_na/10712_na.html
HP StorageWorks AIT
50-GB Tape Drive, Internal (Carbon)
157766-B22
HP StorageWorks AIT 50-GB Tape
Drive, External (Carbon)
157767-002
HP StorageWorks Internal AIT
50-GB, Hot Plug (Carbon)
NOTE:
Please see the AIT 50-GB Tape Drive QuickSpecs for additional options such as adapters,
controllers, and cassettes, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
10425_na/10425_na.html
HP StorageWorks Internal AIT
100-GB Tape Drive (Carbon)
NOTE:
Please see the AIT 100-GB Tape Drive QuickSpecs for additional options such as adapters,
controllers, and cassettes, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
11062_na/11062_na.html
Internal and External DLT/
SDLT Tape Drives
NOTE:
Please see the 20/40-GB DLT Drive QuickSpecs for additional options such as data and
cleaning cartridges, and for an up-to-date listing of the latest O/S Support details,
please see the following: http://www5.compaq.com/products/quickspecs/
10234_na/10234_na.html
HP StorageWorks 40/80-GB DLT Tape
Drive, Internal (Carbon)
NOTE:
Please see the 40/80-GB DLT Drive QuickSpecs for additional options such as host bus
adapters, controllers, cassettes, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
10658_na/10658_na.html
Internal and
External DLT VS Tape Drives
HP StorageWorks DLT VS 40/80 Tape
Drive, Internal (Carbon)
NOTE:
Please see the DLT VS 40/80 Tape Drive QuickSpecs for additional options such as host bus
adapters, controllers, cassettes, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
11403_na/11403_na.html
HP StorageWorks Rackmount SDLT
110/220, 3U (Single Drive)
NOTE:
Please see the SDLT 110/220-GB Tape Drive QuickSpecs for additional options such as
adapters, controllers, and media, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
10772_na/10772_na.html
NOTE:
Please see the SDLT 160/320-GB Tape Drive QuickSpecs for additional options such as
adapters, controllers, and media, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
11406_na/11406_na.html
NOTE:
Please see the HP StorageWorks Ultrium 230 Tape Drive QuickSpecs for additional options
such as controllers, and other related items, and for an up-to-date listing of the latest
O/S Support details, please see the following: http://www5.compaq.com/products/quickspecs/
11415_na/11415_na.html
HP StorageWorks Ultrium 460 Tape
Drive for ProLiant, Internal (Carbon)
NOTE:
Please see the HP StorageWorks Ultrium 460 Tape Drive QuickSpecs for additional options
such as data and cleaning cartridges, and for an up-to-date listing of the latest O/S
Support details, please see the following: http://www5.compaq.com/products/quickspecs/
11530_na/11530_na.html
Internal and External DAT
Autoloader
20/40-GB DAT 8 Cassette
Autoloader Internal (Opal)
20/40-GB DAT 8 Cassette
Autoloader External (Opal)
166505-001
NOTE:
Please see the 20/40-GB DAT DDS-4 8 Cassette Autoloader QuickSpecs for additional options
such as adapters, controllers, and cassettes, and for an up-to-date listing of the latest
O/S Support details, please see the following: http://www5.compaq.com/products/quickspecs/
10518_na/10518_na.html
AIT Autoloader
HP StorageWorks AIT 35 GB
Autoloader, Rackmount (Carbon)
280349-001
HP StorageWorks AIT 35 GB
Autoloader Tabletop (Carbon)
292355-001
NOTE:
Please see the AIT 35-GB Autoloader QuickSpecs for additional options such as adapters,
controllers, and cassettes, and for an up-to-date listing of the latest O/S Support
details, please see the following: http://www5.compaq.com/products/quickspecs/
11404_na/11404_na.html
HP StorageWorks 1/8
Autoloader
HP StorageWorks 1/8 Autoloader,
Tabletop, Ultrium 230
3U Rackmount Kit NOTE: The 3U Rackmount Kit (PN
274338-B21) can support up to (2) full-height or (4) half-height tape drives and
compatible with multiple Single-Ended and LVD SCSI Tape Drives including the 12/24-GB DAT,
20/40-GB DAT, 20/40-GB DAT DDS-4 8 Cassette Autoloader, AIT 35-GB LVD, AIT 50 GB, 20/40-GB
DLT, 40/80-GB DLT, and the SDLT 110/220-GB Tape Drives.
5U Rackmount Kit NOTE: The 5U Rackmount Kit (PN
274339-B21) can support up to (4) full-height tape drives and is compatible with all
Compaq DLT/SDLT tape drives including the 20/40-GB DLT, 35/70-GB DLT, 40/80-GB DLT, and
the SDLT 110/220-GB tape drives.
Required
Adapters/Controllers for SSL2020 AIT Library
SAN Access Module for Smart Array
5302 Controller
216687-B21
NOTE:
Please see the SSL2020 Automated AIT Tape Library Solution QuickSpecs for additional
information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional
options needed for a complete solution at: http://www5.compaq.com/products/quickspecs/
10580_na/10580_na.html
NOTE:
Please see the StorageWorks MSL5026DLX or MSL5026SL Library QuickSpecs for additional
information including Upgrade Kits, Accessories, and SCSI Cable Kits and additional
options needed for a complete solution at: http://www5.compaq.com/products/quickspecs/
10860_na/10860_na.html
MSL5026SL, Tabletop, 1 SDLT
Drive (Graphite)
302511-B21
MSL5026SL, Tabletop, 2 SDLT
Drives (Graphite)
302511-B22
MSL5026SL, Rackmount, 1 SDLT
Drive (Graphite)
302512-B21
MSL5026SL, Rackmount, 2 SDLT
Drive (Graphite)
302512-B22
NOTE:
Please see the StorageWorks MSL5026SL Library QuickSpecs for additional information
including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for
a complete solution at: http://www5.compaq.com/products/quickspecs/
11440_na/11440_na.html
NOTE:
Please see the StorageWorks MSL5026S2 Library QuickSpecs for additional information
including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for
a complete solution at: http://www5.compaq.com/products/quickspecs/
11453_na/11453_na.html
NOTE:
Please see the StorageWorks MSL5052SL Library QuickSpecs for additional information
including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for
a complete solution at: http://www5.compaq.com/products/quickspecs/
11061_na/11061_na.html
NOTE:
Please see the StorageWorks MSL5052S2 Library QuickSpecs for additional information
including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for
a complete solution at: http://www5.compaq.com/products/quickspecs/
11442_na/11442_na.html
NOTE:
Please see the StorageWorks MSL5030 LTO Library QuickSpecs for additional information
including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for
a complete solution at: http://www5.compaq.com/products/quickspecs/
11439_na/11439_na.html
NOTE:
Please see the StorageWorks MSL5060 LTO Library QuickSpecs for additional information
including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for
a complete solution at: http://www5.compaq.com/products/quickspecs/
11438_na/11438_na.html
NOTE:
Options include controller, solution kits, ACS. MA8000/EMA12000 includes controller shelf,
drive shelves and cabinet. Packaging upgrade to RA8000/ESA12000.
NOTE:
Models include: Dual HSG80 controllers in each Model 2200 enclosure (2 pairs per single
bus configuration, 4 pairs per dual bus configuration) with 1GB cache per controller pair,
and 12 14-bay drive enclosures with redundant power supplies. Configure-to-Order (CTO)
builds are available. Options include ACS, platform kits and software by HP.
NOTE:
Please see the StorageWorks EMA16000 QuickSpecs for FC switches, platform software, host
adapters, disks and options for complete solutions at:
64-bit/66-MHz Fibre Channel Host
Adapter NOTE: The 64-bit/66-Mhz Fibre Channel
Host Adapter has been qualified for use with the Compaq RAID Array 4000 family of
products, the Enterprise Backup Solution, and the RAID Array 8000 under NetWare.
64-bit/66-MHz Fibre Channel Host
Adapter (Japan) NOTE: The 64-bit/66-Mhz Fibre Channel
Host Adapter has been qualified for use with the Compaq RAID Array 4000 family of
products, the Enterprise Backup Solution (EBS) offerings, and the RAID Array 8000 under
NetWare.
NOTE: 0U
mounting brackets shipped with the unit (separate option kit for 1U mounting).
Compaq Power Distribution
Unit-16A (200 to 240V) NOTE: The 16A PDU also connects to the
high volt models of the UPS R3000 XR (need cable PN 340653-001 ) and the UPS R6000 models.
Cable PN 340653-001 required if connecting to UPS R3000 XR ( 192186-002 High Volt model
only).
Modular
PDUs -1U/0U (Up to 32 outlets) NOTE: 1U/0U mounting brackets shipped
with the unit (optimized for 10000 and 9000 series racks).
HP Modular Power
Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) NOTE: This mPDU ( 252663-D71) may also
be used to connect the low volt model of the UPS R3000 XR.
HP Modular Power Distribution
Units (mPDU), High Volt Model, 16A (200-240 VAC) NOTE: This PDU has a detachable input
power cord and allows for adaptability to country specific power requirements. This model
may also be used with the high volt UPSs R3000 XR and R6000.
Third Party PDU Mounting Kit NOTE: This kit allows you to mount the
Modular PDUs in racks other than the 9000/10000 Series racks (any racks using the standard
19² rail). For more details please refer the Modular PDU
QuickSpecs.
NOTE:
-B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs
and Channels)
–B23 (crated) used for air shipments of empty racks
NOTE: It is mandatory to
use a shock pallet in order to ship racks with equipment installed. Not all Compaq
equipment is qualified to be shipped in the Rack 10000 series.
NOTE:
-B21 (pallet) used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs
and Channels)
–B23 (crated) used for air shipments of empty racks
NOTE: This kit can
be used to connect 9000 and 10000 series racks of the same U height together. Kit contents
include hardware for connecting racks and a panel to cover the 100mm gap at the rear of
the two racks.
Rack Blanking Panels (4U) NOTE: The Rack Blanking Panels
(PN 189453-B24) contains 10 each of (4U).
189453-B24
Rack Blanking Panels (5U) NOTE: The Rack Blanking Panels
(PN 189453-B25) contains 10 each of (5U).
189453-B25
9000/10000 Series Offset Baying
Kit(42U)
NOTE: This kit can be
used to connect 9000 and 10000 series racks of the same U height together. Kit contents
include hardware for connecting racks and a panel to cover the 100mm gap at
1U Rack Keyboard & Drawer
(Carbon) NOTE: The 1U Rack Keyboard & Drawer
(PN 257054-001) is to be used with the
Keyboards for Racks with Trackball (PN 158649-001).
Input Device Adjustable Rails NOTE: Input Device Adjustable Rails
(287139-B21) are for use ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer
that is used in mounting into third party racks.
287139-B21
Input Device Telco Rail NOTE: Input Device Telco Rails
( 287138-B21) are for use ONLY with the TFT5110R, TFT5600RKM and integrated keyboard/drawer
that is used in mounting into third party racks.
4-Hour On-site
Service, 5-Day x 9-Hour, 3 Years (6-3 Part Number for U.S.)
162658-002
4-Hour On-site
Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for Canada)
162658-122
4-Hour On-site
Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for U.S.)
162657-002
4-Hour On-site
Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for Canada)
162657-122
Installation & Start-up
Services
Hardware Installation
(6-3 Part Number for U.S.)
401792-002
Hardware Installation
(6-3 Part Number for Canada)
401792-122
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to server at
same time of server installation; assemble & test; basic user information provided;
Install & configure basic functionality of Win NT Operating System plus up to 1 day
start-up activity, configure print & network access services, and orientation (6-3
Part Number for Canada.)
FM-MSTEC-02
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to server at
same time of server installation; assemble & test; basic user information provided;
Install & configure basic functionality of Win NT Operating System plus up to 1 day
start-up activity, configure print & network access services, and orientation (6-3
Part Number for U.S.)
240014-002
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to server at
same time of server installation; assemble & test; basic user information provided;
Install & configure basic functionality of Novell NetWare Operating System plus up to
1 day start-up activity, configure print & network access services, and orientation
(6-3 Part Number for Canada)
FM-NSTEC-02
Pre-installation
planning; unpack equipment, install most current Compaq HW options internal to server at
same time of server installation; assemble & test; basic user information provided;
Install & configure basic functionality of Novell NetWare Operating System plus up to
1 day start-up activity, configure print & network access services, and orientation
(6-3 Part Number for U.S.)
240009-002
CarePaq Priority Services
for ProLiant Servers – Priority Level
9 x 5 HW, 4-hr
response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for
Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next
Available Specialist (6-3 Part Number for Canada)
FM-M01E2-36
9 x 5 HW, 4-hr
response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for
Windows NT, Windows 2000, Professional, Server or Advanced Server Operating System, Next
Available Specialist (6-3 Part Number for U.S.)
239929-002
9 x 5 HW, 4-hr
response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for
Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for Canada)
FM-N01E2-36
9 x 5 HW, 4-hr
response, Next Available HW engineer; 9 x 5 Bronze Software Support 2-hr response for
Novell NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)
239969-002
CarePaq Priority Services
for ProLiant Servers – Priority 24 Level
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Windows NT,
Windows 2000, Professional, Server or Advanced Server Operating System, Next Available
Specialist (6-3 Part Number for U.S.)
239931-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr response for Novell
NetWare Operating System, Next Available Specialist (6-3 Part Number for U.S.)
239971-002
CarePaq Priority Services
for ProLiant Servers – Priority Silver
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday –
Friday, 8AM – 5PM local time, 2-hr response after hours for Windows NT, Windows 2000,
Professional, Server or Advanced Server Operating System, Technical Account Manager,
Technical Newsletter, SW activity review, proactive patch notification, 1 System
Healthcheck per year (6-3 Part Number for U.S.)
239933-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Windows NT,
Windows 2000, Professional, Server or Advanced Server Operating System (6-3 Part Number
for U.S.)
239935-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr response, Monday –
Friday, 8AM – 5PM local time, 2-hr response after hours for Novell NetWare Operating
System, Technical Account Manager, Technical Newsletter, SW activity review (6-3 Part
Number for U.S.)
239973-002
24 x 7 HW, 4-hr
response, Named HW engineer; 24 x 7 Silver Subsequent System Support for Novell NetWare
Operating System (6-3 Part Number for U.S.)
Compaq ProLiant ML370 Generation 2 (G2)
All Models
Standard Memory
256-MB PC133-MHz Registered ECC SDRAM DIMM comes installed (2 x 128-MB SDRAM)
Standard Memory Plus Optional Memory
Up to 4,352-MB of memory is available with the
optional installation of PC133-MHz Registered ECC SDRAM memory kits.
Standard Memory Replaced with Optional Memory
Up to 6,144-MB of memory is available with the
removal of the standard256 MB of memory and the optional installation of PC133-MHz
Registered ECC SDRAM memory kits.
NOTE: This chart does not
represent all possible memory configurations.
NOTE:
All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support U320 transfer
rates.
External Storage
StorageWorks
Enclosure 4300 Family
(supports Ultra2/Ultra3 drives only)
Maximum Storage Capacity (StorageWorks
Enclosure 4300) (Hot Plug)
Internal
1.174 TB (6 x 146GB 1² Ultra 320 hot plug hard drives with standard internal drive cage + 2 x 146.8GB 1² Ultra 320 Hot plug hard
drive using the optional ML3xx Two Bay Hot Plug SCSI Drive Cage)
External
51.380 TB (25 Storage
Works Enclosures, each with 14 x 146.8GB Ultra 320 1² drives,
utilizing 6 x 4 channel 5300 SCSI controllers, plus integrated external channel for the
25th channel)
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: ML370 G2
- Click on: "Power Calculator" link. (You may need to
scroll down to see it)
DL QuickSpecs
US QuickSpecs
327281-B21
