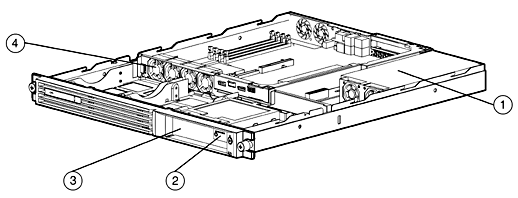

The HP ProLiant DL320 G2 is the cost-effective
1U, 1-way server for flexibly deploying and managing front-end and single-function
applications
1U Rack form factor (1.75")
ServerWorks CMIC-SL Chipset with 533-MHz Front
Side Bus
128-MB PC2100 ECC DDR SDRAM Memory, expandable
to 4 GB
One full-length 64-bit/33-MHz PCI slot available
Two NC7760 PCI Gigabit Server Adapters (embedded)
Integrated Dual Channel Ultra ATA/100 Adapter
with Integrated ATA RAID (0, 1)
Optional Slotless Single Channel Wide Ultra3
SCSI Controller Module
Internal storage capacity of up to 274 GB in
ATA Models (2 x 160 GB 1" ATA/100 Non-Hot Plug Drives) or 145.6
GB (2 x 72.8 GB 1" non hot plug SCSI) NOTE: Please note that
the internal ATA controller will only recognize a maximum of 137 GB/HDD
in the HP ProLiant DL320 G2. If the hard drive bays are populated with
160 GB HDDs, the system will recognize a max of 137 GB each, for a maximum
storage capacity of 274 GB.
180-Watt PFC Power Supply
Front and Rear Unit Identification switches
(UID)
Exceptional serviceability with optional sliding
rails, cable management and in-rack toolless service ability access
Automatic Server Recovery (ASR), Insight Manager
and SmartStart
Protected by HP Services, including a three-year
parts, one-year labor, one-year, on-site service, Next Business Day-limited,
global warranty and extended, Pre-Failure Warranty which covers processors,
memory, and hard drives - Certain restrictions and exclusions apply.
*NOTE: Default bus assignment.
Inserting cards with PCI bridges may alter the actual bus assignment number.
**NOTE: Slots are enumerated differently based on OS. MS OS's enumerate
from lowest to highest Device ID by bus (starting with the lowest bus).
NOTE: All slots can accept universal keyed PCI cards.
Storage Controllers
Integrated Dual
Channel Ultra ATA/100 Adapter with Integrated ATA RAID 0, 1
Storage
Diskette Drive
1.44 MB Diskette Drive (included
in some models)
Optical Drive
24x IDE (ATAPI) Low-Profile
CD-ROM Drive (included in some models) NOTE: CD-ROM/Diskette Drive Assembly
Option Kit 301048-B21.
Hard Drives
One of the following: (depending on model)
None
80 GB ATA drive
Maximum Internal
Storage Type
Non-hot plug ATA
1.44 MB Diskette Drive (included
in some models)
2 x 160 GB Ultra ATA/100 7,200
rpm
NOTE: ATA controller
will only recognize 137 GB of a 160 GB HDD.
Integrated ATI RAGE XL Video
Controller with 8-MB SDRAM Video Memory
Form Factor
Rack (1U), (1.75 in/4.45 cm)
ProLiant
Essentials Foundation Pack Software
HP
Systems Insight Manager
HP's new HP Systems Insight
Manager (HP SIM) helps maximize system uptime and performance and
reduce system maintenance costs by providing proactive notification
of problems before those problems result in unplanned downtime or
reduced productivity. HP SIM are both easy to set up work with the
Insight Management Agents, integrated Light-Out and Remote Insight
Light-Outs Edition, and Version Control Agents to deliver robust fault,
configuration, and asset management as well as remote administration.
With HP SIM customers will also be able to take advantage of role-based
security; the ability to manage ProLiant, Integrity, and HP 9000 systems;
and plug-ins for storage, client, printer, and power management as
well as server rapid deployment, performance management, and workload
management. For more details on HP SIM visit http://www.hp.com/go/hpsim.
SmartStart
SmartStart is a tool that
simplifies server setup, providing a rapid way to deploy reliable
and consistent server configurations. For more information, please
visit the SmartStart Web site at http://www.hp.com/servers/smartstart.
SmartStart version supported (minimum):
SmartStart 6.40.
Management Agents
The Management Agents
form the foundation for HP's Intelligent Manageability strategy. They
provide direct, browser-based access to in-depth instrumentation built
into HP servers, workstations, desktops, and portables, and send alerts
to Insight Manager 7 and other enterprise management applications
in case of subsystem or environmental failures. For additional information
about the Management Agents and other management products from HP,
please visit the management Web site at http://www.hp.com/servers/manage.
Subscriber's Choice
Subscriber's Choice Driver
and Support Alerts/Notifications is a web-based email subscription
service that provides automatic delivery of software and driver change
notifications for ProLiant products. Sign up at http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
ROMPaq,
support software, and
configuration utilities
The latest software, drivers,
and firmware fully optimized and tested for your ProLiant server and
options available in SmartStart or downloadable from Software and
Drivers download pages, linked from the SmartStart website at http://www.hp.com/servers/smartstart.
Survey Utility and diagnostics
utilities
The most advanced configuration
analysis, reporting and troubleshooting utilities used by HP and at
your fingertips, available in SmartStart.
Optional
ProLiant Essentials Value Packs
Optional software offerings
that selectively extend the functionality of an Adaptive Infrastructure
to address specific business problems and needs:
Rapid Deployment Pack – an automated solution for multi-server
deployment and provisioning, enabling companies to quickly and
easily adapt to changing business demands.
Workload Management Pack – provides easier management of
complex environments, improving overall server utilization and
enabling Windows® 2000 customers for the first time to confidently
deploy multiple applications on a single multiprocessor ProLiant
Server.
Performance Management Pack – a performance management
solution that identifies and explains hardware performance bottlenecks
on ProLiant servers and attached options enabling users to better
utilize their valuable resources.
Intelligent Networking Pack - detects and analyzes network bottlenecks
or broken network linkages and steers traffic to the optimum route
based on network conditions.
Vulnerability and Patch Management Pack - identifies and remediates
software security vulnerabilities due to missing patches as well
operating system configurations that can be exploited by viruses,
worms, and other blended threats
Virtual Machine Management Pack - provides central management
and control of virtual machines from Microsoft and VMware. Integrated
approach provides the ability to manage both physical and virtual
resources from a single management console.
NOTE: Flexible
and volume quantity license kits are available for ProLiant Essentials Value
Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials
Industry Standard
Compliance
PCI 2.2 Compliant
PXE Support
WOL Support
Microsoft® Logo certifications
USB 1.1
Intelligent
Manageability
Automatic Server Recovery (ASR)
Remote Insight Lights-Out Edition ll (optional)
Insight Manager 7
HP Systems Insight Manager
Integrated Management Log
Drive Parameter Tracking (with Smart Array Controllers)
Dynamic Sector Repairing (with Smart Array Controllers)
Pre-Failure Warranty (covers processors, hard drives and memory)
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
Removable CD-ROM/Diskette Drive Assembly
Administrator's password
Server Power Cords
One Lowline and one Highline
(IEC-IEC) power cord ships standard.
Power Supply
Auto-sensing 180-Watt PFC Power
Supply, CE Mark Compliant
System Fans
6 fans ship standard. 6 total
supported internally.
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires
increased cooling efficiency for rack-mounted servers. The 10000 Series
Racks provide enhanced airflow for maximum cooling, allowing these racks
to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional
requirements to ensure adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front
and rear doors, you must allow 5,350 sq cm (830 square inches) of hole evenly
distributed from top to bottom to permit adequate airflow (equivalent to the required
64 percent open area for ventilation).
Side: The clearance between
the installed rack component and the side panels of the rack must be a minimum
of 7 cm (2.75 inches)
CAUTION: Always use blanking panels to
fill all remaining empty front panel U-spaces in the rack. This arrangement ensures
proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
NOTE: For additional information,
refer to the Setup and Installation Guide or the Documentation CD provided with
the server, or to the server documentation located in the Support section at the
following URL: http://www5.compaq.com/products/servers/ProLiantdl320/index.html.
Factory Express Portfolio for
Servers and Storage
HP Factory Express offers configuration,
customization, integration and deployment services for HP servers and/or
storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking,
installation, complex configuration and design services as well as individual
factory services, such as image loading, asset tagging, and custom packaging
to meet customer needs. HP products supported through Factory Express
include: HP Integrity, HP ProLiant & Blades, HP 9000 servers and the
MSA1000, VA7xxx, EVA3000 & EVA5000, XP, rackable tape libraries and
configurable network switches storage products.
Three-year limited warranty,
including hardware diagnostic support, pre-failure warranty (coverage of
hard drives, memory and processors). The warranty is fully supported by
HP Services and a worldwide network of resellers and service providers.
In addition 90-day's getting started software telephone support may be covered
under the warranty or available for an additional fee. Enhancements to warranty
services are available through HP Care Pack services.
NOTE: Limited warranty includes 3 year
parts, 1 year labor, 1-year on-site support
Care Pack services provide a range of life cycle support options that
let you choose the service levels that meet your business requirements,
from basic to mission-critical.
A full range of HP Care Pack hardware and software services are available
including:
Installation and start up
Education courses
Extended onsite hardware coverage hours from same business day 13
hours, 5 day to 24 hours, 7 days call window with options including
4-hour response or 6-hour Call To Repair
Comprehensive range of software technical support for Microsoft, Linux,
ProLiant Essentials and VMWare-based IT solutions helping to deliver
high level of application availability. Response times range from 30
mins for critical problems to 2 hours.
System Management, Performance Services and Mission Critical Support
Solution
HP Care Pack Services include HP branded hardware options qualified for
the server, purchased at the same time or afterwards, internal to the
enclosure, as well as 22" and smaller external monitors and tower
UPS options up to 3KVA. 22" and smaller external monitors will be
covered at the same service level and coverage period as the server. For
servers or storage systems installed within a rack, service also covers
all HP qualified rack options installed within the same rack.
NOTE: For more
information on HP Care Pack services, contact any of our worldwide sales
offices or resellers or visit our worldwide Web site on the internet at:
http://www.hp.com/hps/carepack
NOTE: For more complete information on HP Services offerings, customers
and resellers, please visit us at: http://www.hp.com/hps
NOTE: Additional information regarding worldwide limited warranty and
technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
NOTE:
This license allows 1 server to be managed and deployed via the Deployment
Server. NOTE: Rapid Deployment pack is now available in Linux only environments.
Rapid Deployment
Pack, 10 Users, V1.x
269817-B21
NOTE:
This license allows 10 servers to be managed and deployed via the Deployment
Server. NOTE: Rapid Deployment pack is now available in Linux only environments.
Flexible Quantity
License Kit
302127-B21
License-Only - for
use with a Master License Agreement
ProLiant Essentials
Virtual Machine Management Pack, Single-Server License NOTE: For use with a single server.
Contains one license with a unique license activation key and documentation.
372214-B21
ProLiant Essentials
Virtual Machine Management Pack, Flexible-Quantity License NOTE: For use with multiple servers.
This part number can be used to purchase multiple licenses with a single
activation key.
372215-B21
ProLiant Essentials
Virtual Machine Management Pack, Tracking License NOTE: For use with signed and implemented
Activation Key Agreements only. Purchase of this part number entitles the
customer to deploy additional licenses of the product under the terms of
the existing Activation Key Agreement.
372216-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Single-Server License
371645-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, 10-Server License
372029-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Flexible-Quantity License
371646-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Tracking license for new servers
371647-B21
ProLiant Essentials
Vulnerability and Patch Management Pack, Tracking license for installed
servers
NOTE:
Flexible and volume quantity license kits are available for ProLiant
Essentials Value Packs. Refer to http://www.hp.com/servers/proliantessentials
or the various ProLiant Essentials Value Pack product QuickSpecs for more
information. NOTE: For more information regarding ProLiant Essentials Software,
please see the following URL: http://www.hp.com/servers/proliantessentials.
Software Options
HP ProLiant DL320 Firewall/VPN/Cache
Server (pre-installed only)
NOTE: All U320
Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives
require an optional U320 Smart Array Controller or U320 SCSI HBA to support
U320 transfer rates.
ATA/100 - Non-Hot Plug
160-GB ATA 100 7,200 RPM Hard
Drive (1") NOTE: ATA controller will only recognize
137GB of a 160GB HDD.
NOTE: This 256-MB Battery-Backed Cache
Module supports the Smart Array 5300 series controllers, HP StorageWorks
Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500
NOTE: Supports
Wide Ultra3, Ultra320 SCSI drives only. If cabling to internal drives, you
must first remove the integrated controller module. ATA models require the
Wide Ultra3 SCSI cable option kit 212690-B21. NOTE: This adapter will run at 33-MHz speeds due to the 33-MHz PCI
Bus.
64-Bit/66-MHz Dual Channel Wide
Ultra3 SCSI Adapter, Alternate OS
NOTE: Supports
Wide Ultra3, Ultra320 SCSI drives only. If cabling to internal drives, you
must first remove the integrated controller module. ATA models require the
Wide Ultra3 SCSI cable option kit 212690-B21. NOTE: This adapter will run at 33-MHz speeds due to the 33-MHz PCI
Bus.
NOTE:
External tape devices, including both tape drives and tape arrays/enclosures,
can be directly connected to the VHDCI SCSI port located on the back
of the server. Use of a SCSI adapter to connect these devices is optional,
not required.
External, Rack-Mount,
and Array Module Ultrium Tape Drives
HP StorageWorks Ultrium
215 Tape Drive, External (Carbon)
HP StorageWorks 1U Rack-Mount
Kit NOTE: The 1U Rack-mount Kit
can support up to 2 half-height tape drives and compatible with multiple
Single-Ended and LVD SCSI tape drives including DAT 24, DAT40, DAT72,
DLT VS 80, and Ultrium 215 tape drives.
HP StorageWorks 3U Rack-Mount
Kit NOTE: The 3U Rack-Mount Kit
can support up to 2 full-height or 4 half-height tape drives and compatible
with multiple Single-Ended and LVD SCSI tape drives including DAT,
DLT VS80, SDLT 320, Ultrium 215, Ultrium 230, and Ultrium 460 Tape
Drives.
HP StorageWorks 5U Rack-Mount
Kit NOTE: The 5U Rack-Mount Kit
can support up to 4 full-height tape drives and is compatible with
SDLT 320, Ultrium 230, and Ultrium 460 tape drives.
NOTE:
The Tape Array 5300 is a 3U enclosure that supports up to 2 full-height
or 4 half-height hot-swap array modules, including DAT and Ultrium
tape drives. Cables and terminators are not included and must be ordered
separately. NOTE: Please see the Tape Array 5300 QuickSpecs for additional
information regarding this product. http://h18000.www1.hp.com/products/quickspecs/11878_na/11878_na.html
Accessories for 3U
& 5U Rack-mount Tape Drive Kits
LVD Cable Kit, VHDCI/HD68 NOTE: For use with the 3U Rack-mount
Kit and 5U Rack-mount Kit only.
NOTE: Required
to install the 1/8 tape autoloader in a standard 19-inch rack NOTE: Please reference the 1/8 Tape Autoloader QuickSpecs at
http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
HP StorageWorks SSL1016
Tape Autoloader
SSL1016 Ultrium 460 Tape
Autoloader
330821-B21
SSL1016 SDLT 320 Tape Autoloader
330816-B21
NOTE: Please
reference the SSL1016 Tape Autoloader QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please
reference the MSL6000 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please
reference the MSL5026S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please
reference the MSL5052S2 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please
reference the MSL5030 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please
reference the MSL5060 Tape Library QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
NOTE: Please
reference the ESL E-Series Tape Libraries QuickSpecs at http://www.hp.com/go/automation
for additional information needed to create a complete solution; reference
current compatibility information at http://www.hp.com/go/ebs
Magento-Optical Jukeboxes
HP StorageWorks 9.1 GB Entry-level
Optical Storage
9100mx standalone drive
C1114M
220mx, 1 drive, 24 slot jukebox
C1118M
220mx, 2 drive, 24 slot jukebox
C1119M
NOTE: Please reference
the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution.
HP StorageWorks Ultra Density Optical Storage
30ux standalone drive
AA961A
700ux, 1 drive, 24 slot jukebox
AA962A
700ux, 2 drive, 24 slot jukebox
AA963A
1100ux, 2 drive, 38 slot jukebox
AA964A
NOTE: Please reference
the Magneto-Optical Jukebox data sheets at http://www.hp.com/go/optical
for additional information needed to create a complete solution.
NOTE: -B21 (pallet)
used to ship empty racks shipped on a truck
-B22 (shock pallet) used to ship racks with equipment installed (by custom
systems, VARs and Channels)
–B23 (crated) used for air shipments of empty racks NOTE: It is mandatory to use a shock pallet in order to ship racks
with equipment installed.
Service and Support Offerings (HP Care Pack Services)
Hardware Services On-site
Service
Next Business Day On-site Service,
5-Day x 9-Hour Coverage, 3 Years
U4479A
Next Business Day On-site Service,
5-Day x 9-Hour Coverage, 3 Years, Electronic
U4479E
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years
U4480A
4-Hour On-site Service, 5-Day
x 13-Hour Coverage, 3 Years, Electronic
U4480E
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years
U4481A
4-Hour On-site Service, 7-Day
x 24-Hour Coverage, 3 Years, Electronic
U4481E
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years
U4482A
6-Hour Call to Repair, On-site
Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4482E
Installation & Start-up
Services
Hardware Installation
U4490A
Hardware Installation, Electronic
U4490E
Installation & Start-Up of
a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl.
HP holidays.
U4491A
Installation & Start-Up of
a ProLiant server and Microsoft or Linux O/S per the Customer Description
and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl.
HP holidays, Electronic
U4491E
Support Plus
Onsite HW support, 8am-9pm, M-F,
4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays.
U4492E
Onsite HW support, 8am-9pm, M-F,
4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4492E
Onsite HW support, 8am-9pm, M-F,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays.
U4494A
Onsite HW support, 8am-9pm, M-F,
4hr response and Linux O/S SW Tech support offsite, onsite at HP's discretion,
8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4494E
Support Plus 24
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays.
U4493A
Onsite HW support 24x7, 4hr response
and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7
2hr response time incl. HP holidays, Electronic
U4493E
Onsite HW support 24x7, 4hr response
and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr
response time incl. HP holidays.
U4495A
Onsite HW support 24x7, 4hr response
and Linux O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr
response time incl. HP holidays, Electronic
U4495E
HP Care Pack Priority Services
for ProLiant Servers - Priority Silver
Standard Memory
128-MB PC2100 Registered ECC DDR SDRAM DIMM Memory installed (1 x 128-MB
SDRAM DIMM)
Standard Memory Plus Optional Memory
Up to 3200-MB memory is available with the optional installation of PC2100
Registered ECC DDR SDRAM DIMM Memory kits.
Standard Memory Replaced with
Optional Memory
Up to 4096-MB of memory is available with the removal of the standard
128-MB of memory and the optional installation of PC2100 Registered ECC
DDR SDRAM DIMM Memory kits.
NOTE: Chart does
not represent all possible configurations.
DL QuickSpecs
US QuickSpecs
303284-B21
